DATOUBOSS 51.2V 100Ah LiFePO4 Battery, 5.12kWh, 100A BMS , Wall-Mounted ,for Solar Home RV Energy Storage
-
5-Year Warranty
Long-term protection, worry-free use -
30-Day Free Returns
Easy returns within 30 days -
VAT Included
Price includes all applicable taxes
Product Manual
🇺🇦 Special Buying Guide for Customers in Ukraine
Due to payment and logistics differences, Ukraine orders require a specific purchase process.
Please watch the official tutorial before placing your order.
▶ Official Ukraine Purchase Tutorial
Due to payment and logistics differences, Ukraine orders require a specific purchase process.
Please watch the official tutorial before placing your order.
▶ Official Ukraine Purchase Tutorial
Order in the next [hours] hours [mins] minutes to get it between and

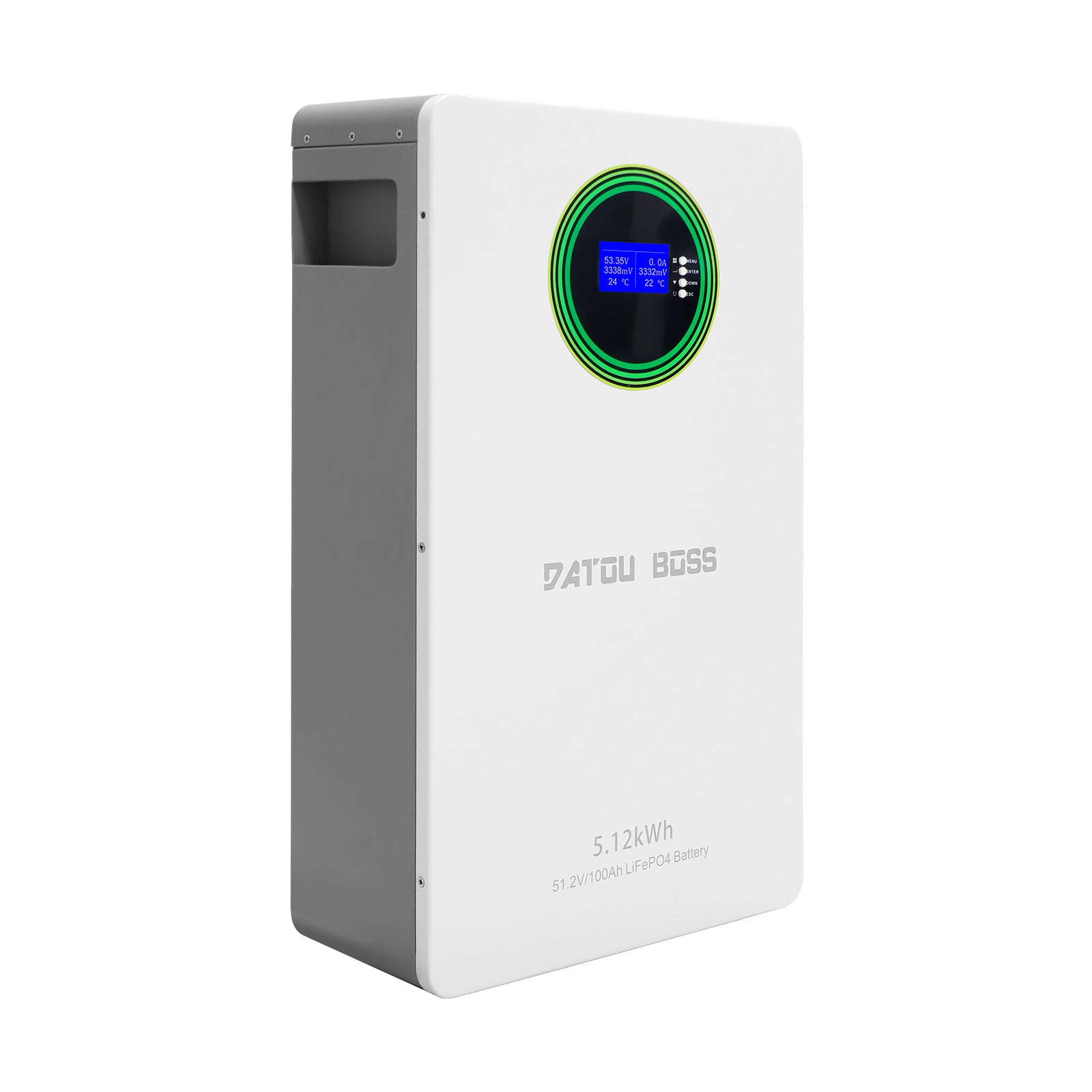

DATOUBOSS 51.2V 100Ah LiFePO4 Battery, 5.12kWh, 100A BMS , Wall-Mounted ,for Solar Home RV Energy Storage
Frequently Bought Together
DATOUBOSS 51.2V 100Ah LiFePO4 Battery, 5.12kWh, 100A BMS , Wall-Mounted ,for Solar Home RV Energy Storage

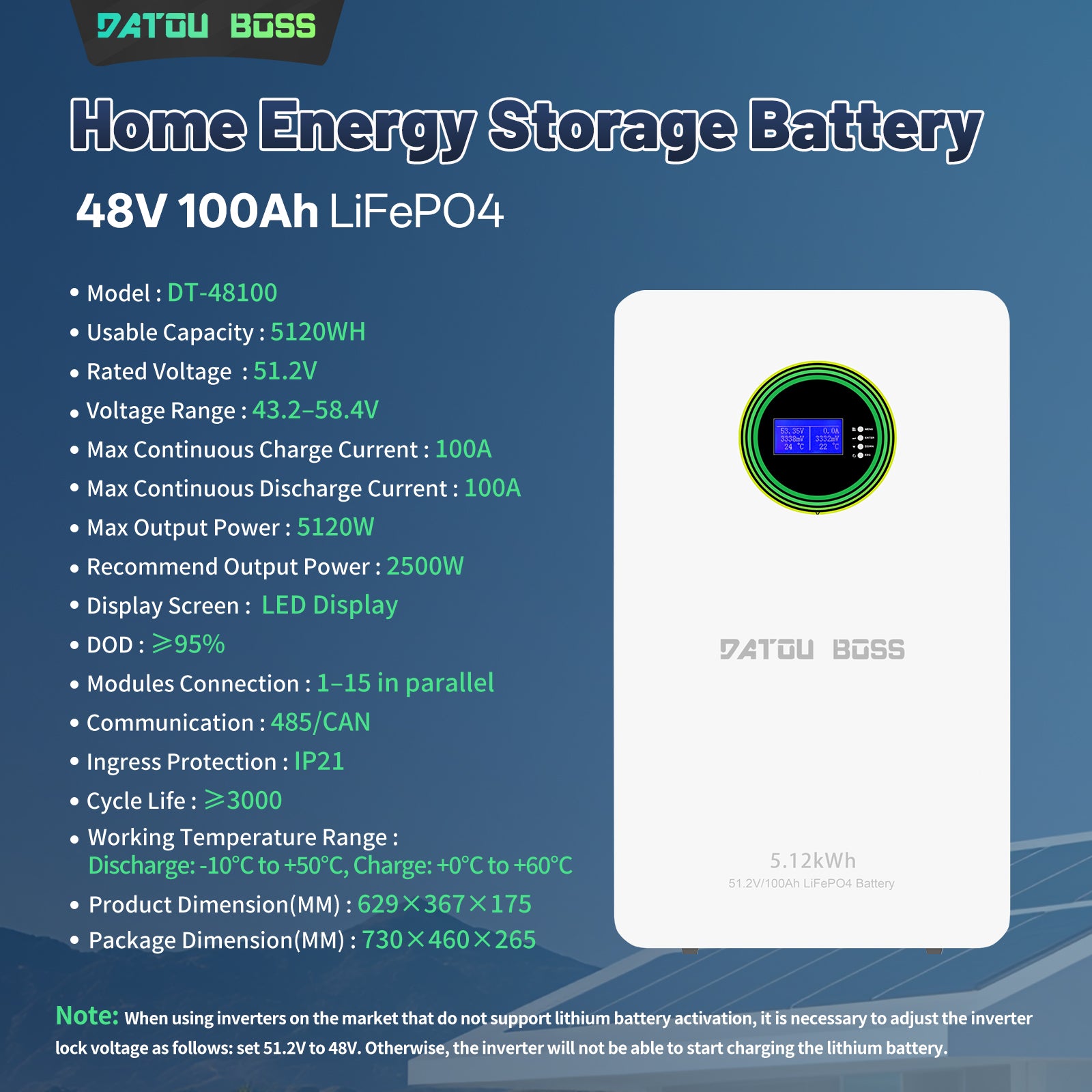

DT-48100BG LiFePO₄ Battery System Specifications
| Parameter | Value |
|---|---|
| Model | DT-48100BG |
| Usable Capacity | 5120Wh (5.12 kWh) |
| Rated Voltage | 51.2V |
| Voltage Range | 43.2V ~ 58.4V |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Max Output Power | 5120W |
| Recommended Output Power | 2500W |
| Depth of Discharge (DoD) | ≥95% |
| Cycle Life (at 80% DoD) | ≥3000 cycles |

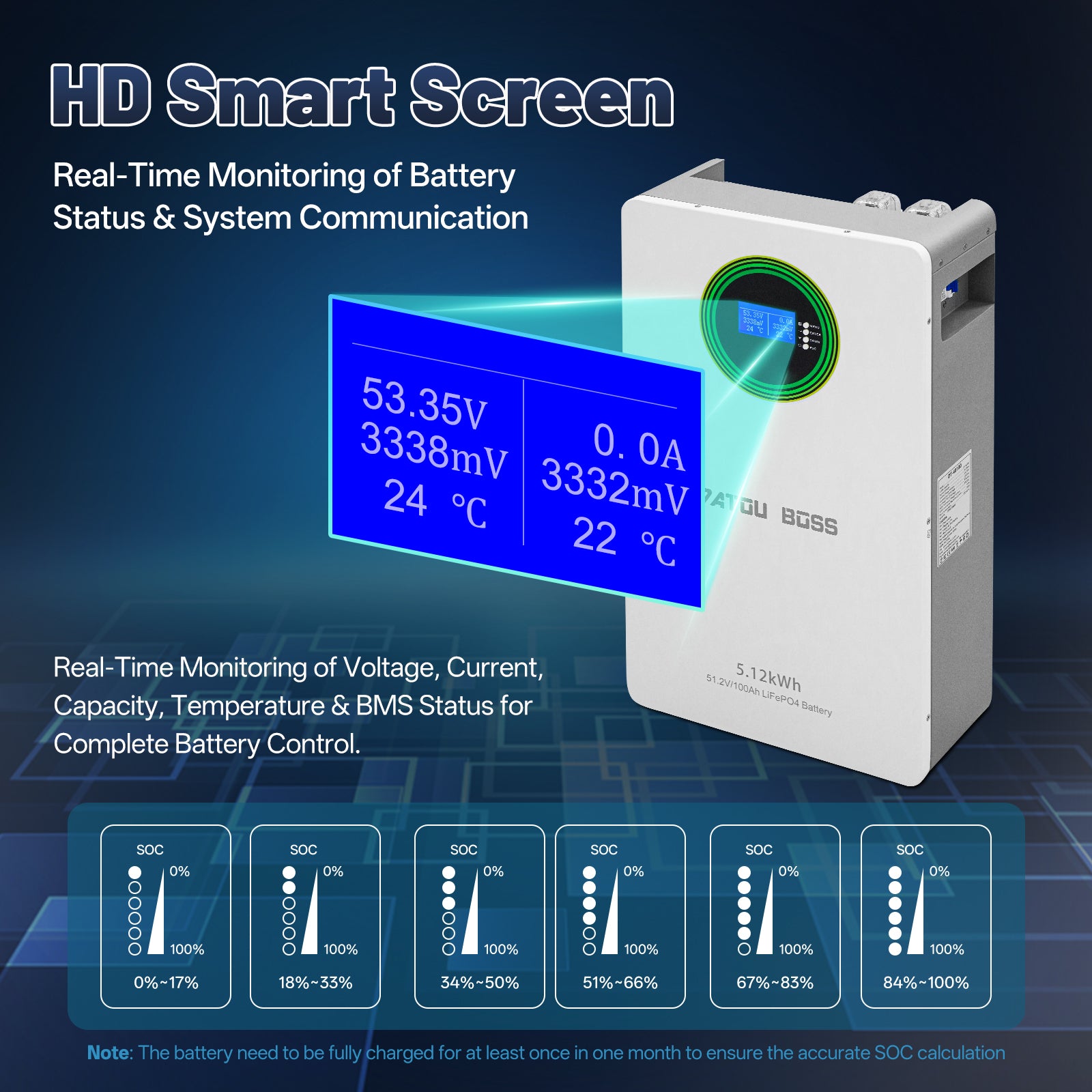

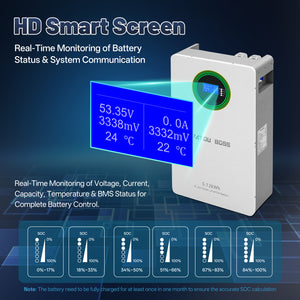

| Display | LED indicator |

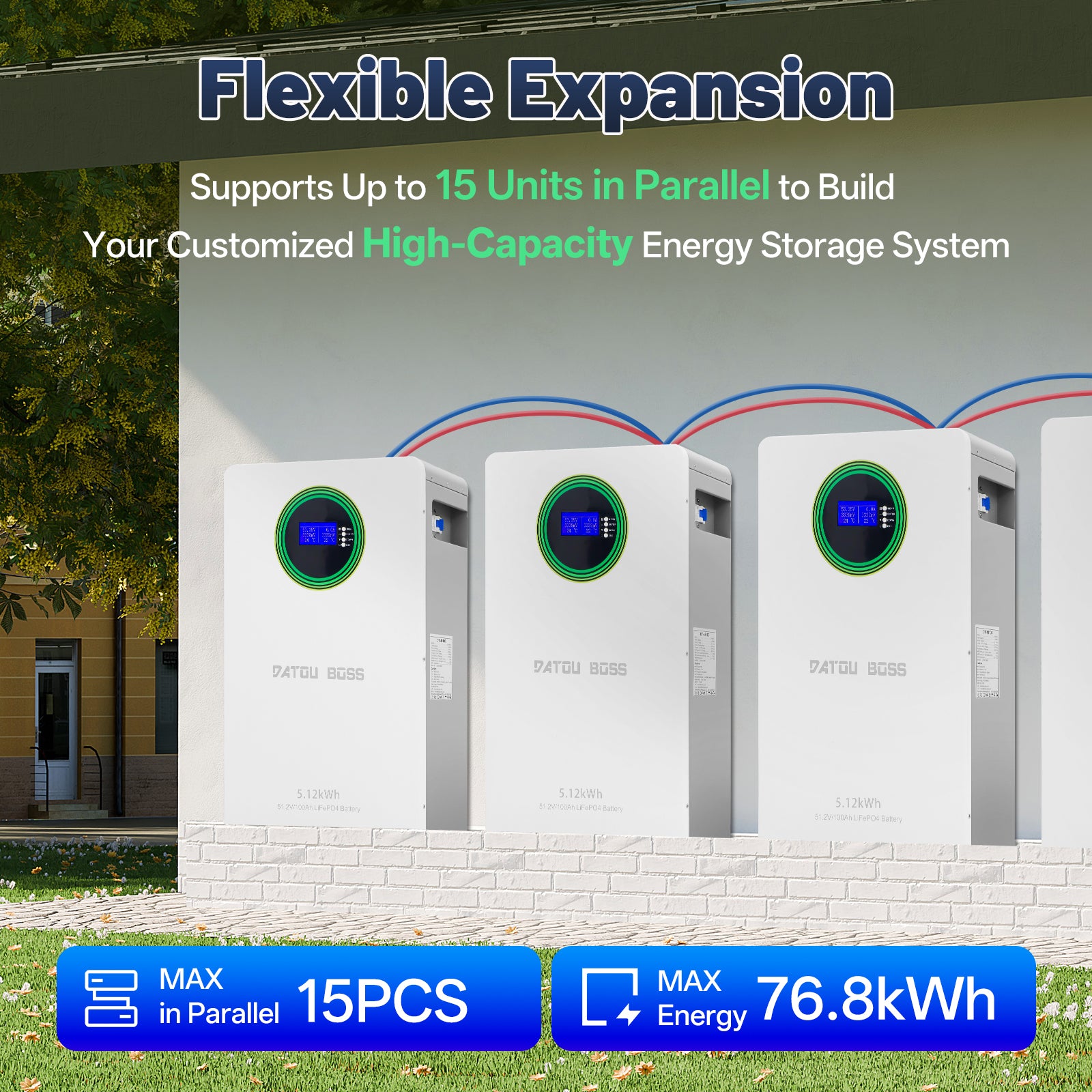

| Parallel Connection | Up to 15 units in parallel (no series) |
| Communication Protocols | RS485, CAN |
| Ingress Protection | IP21 |
| Working Temperature (Discharge) | -10°C ~ +50°C |
| Working Temperature (Charge) | +0°C ~ +60°C |
| Product Dimensions (W×H×D) | 629 × 367 × 175 mm |
| Package Dimensions | 730 × 460 × 265 mm |
Recommended Inverter/Controller Settings for DT-48100BG
| Parameter | Recommended Value |
|---|---|
| Max. Charging Voltage | 58.4V |
| Floating Charging Voltage | 57.6V |
| Max. Charging Current | 100A |
| Cut-off Voltage (Discharge) | 43.2V |
Note: When using inverters without lithium battery activation, set the lock voltage to 48V (instead of 51.2V).
