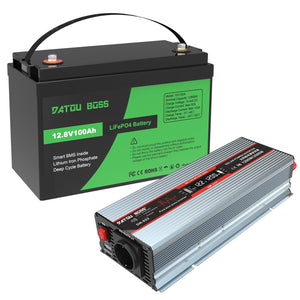

DATOUBOSS 12V 100Ah LiFePO4 Battery with 100A BMS and 1200W Pure Sine Wave Inverter 12V to 230V, 2500W Peak, USB, LED Display, EU Socket for RV Travel, Home Backup & Outdoor Camping
-
5-Year Warranty
Long-term protection, worry-free use -
30-Day Free Returns
Easy returns within 30 days -
No VAT
No additional value-added tax is required. -
Free Shipping
Fast and free delivery to your door
Product Manual
Frequently Bought Together
Order in the next [hours] hours [mins] minutes to get it between and
DATOUBOSS 12V 100Ah LiFePO4 Battery with 100A BMS and 1200W Pure Sine Wave Inverter 12V to 230V, 2500W Peak, USB, LED Display, EU Socket for RV Travel, Home Backup & Outdoor Camping
DATOUBOSS 12V 100Ah LiFePO4 Battery with 100A BMS and 1200W Pure Sine Wave Inverter 12V to 230V, 2500W Peak, USB, LED Display, EU Socket for RV Travel, Home Backup & Outdoor Camping
LiFePO₄ Lithium Battery Series Specifications
| Parameter | 12V 100Ah | 12V 200Ah | 12V 300Ah | 24V 100Ah | 48V 100Ah |
|---|---|---|---|---|---|
| Capacity (Energy) | 1280Wh | 2560Wh | 3840Wh | 2560Wh | 5120Wh |
| Charging Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 28.2±0.4V | 57.6±0.8V |
| Max Charge Current | 50A | 100A | 100A | 50A | 50A |
| Rated Discharge Current | 100A | 200A | 200A | 100A | 100A |
| Maximum Discharge Current | 120A | 240A | 240A | 120A | 120A |
| Charging Temperature | 0°C ~ 45°C (32°F ~ 113°F) | ||||
| Discharge Temperature | -10°C ~ 60°C (14°F ~ 140°F) | ||||
| Low Temperature Protection (Charging) | -5°C ±5°C (14°F ~ 32°F) | ||||
| Low Temperature Protection (Discharging) | -20°C ±5°C (-13°F ~ 5°F) | ||||
| High Temperature Protection (Charging) | 65°C ±5°C (140°F ~ 158°F) | ||||
| High Temperature Protection (Discharging) | 75°C ±5°C (158°F ~ 176°F) | ||||
| Storage Temperature (1-3 months) | -20°C ~ 45°C (-4°F ~ 113°F) | ||||
| Storage Temperature (1 year) | -20°C ~ 20°C (-4°F ~ 68°F) | ||||
| Depth of Discharge (DoD) | ≥80% | ||||
| Series / Parallel Connection | Up to 4S4P (4 in series, 4 in parallel) | ||||
| Battery Management System | Built-in BMS | ||||
| Shell Material | ABS | ||||
| Terminal Material | Brass (Conductivity ≥98%) | ||||
Controller Setting Reference (for LiFePO₄)
| Parameter | 12V System (N=1) | 24V System (N=2) | 48V System (N=4) |
|---|---|---|---|
| System Voltage | 12.0V × N* | 24.0V × N* | 48.0V × N* |
| Boost Charge Voltage | 14.2V × N* | 28.4V × N* | 56.8V × N* |
| Over-discharge Recovery Voltage | 12.6V × N* | 25.2V × N* | 50.4V × N* |
| Over-discharge Cut-off Voltage | 11.1V × N* | 22.2V × N* | 44.4V × N* |
*Note: For 24V systems, N=2; for 48V systems, N=4. Multiply the given voltage by N for the actual setting.
