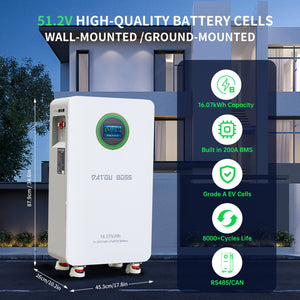

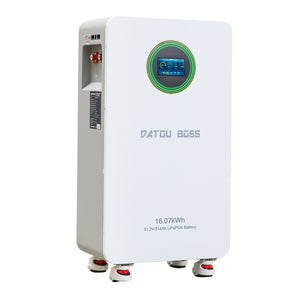

DATOUBOSS 48V 314Ah LiFePO4 Battery 16kWh 210A BMS Metal Case with Wheels for Solar Home RV Energy Storage
Frequently Bought Together
DATOUBOSS 48V 314Ah LiFePO4 Battery 16kWh 210A BMS Metal Case with Wheels for Solar Home RV Energy Storage

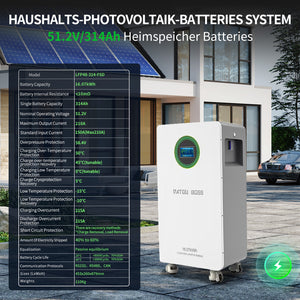

| Category | Details |
|---|---|
| Total Energy | 16.07 kWh |
| Nominal Operating Voltage | 51.2V |
| Single Battery Capacity | 314Ah |
| Weight | 113 kg |
| Dimensions (L×W×H) | 453 × 260 × 879 mm |
| Internal Resistance | ≤ 13.9mΩ |
| Standard Input Current | 210A |
| Standard Output Current | 157A (Max 210A) |
| Overcharge Protection | 58.4V |
| Over-discharge Protection | 43.2V |
| Discharge Cut-off Voltage | 40V |
| Overcurrent Protection (Charging) | 215A |
| Overcurrent Protection (Discharging) | 215A |
| Short Circuit Protection | Yes (via load removal and charge disconnection) |
| Power Delivery Rate | 40% to 60% |
| High-temperature Charging Protection | 55°C |
| High-temperature Charging Recovery | 50°C |
| Low-temperature Charging Protection | 0°C |
| Low-temperature Charging Recovery | 5°C |
| High-temperature Discharge Protection | 55°C |
| High-temperature Discharge Recovery | 50°C |
| Low-temperature Discharge Protection | -20°C |
| Low-temperature Discharge Recovery | -15°C |
| Cycle Life (25°C, 70% SOH) | ≥ 8000 cycles |
| Cycle Life (45°C, 70% SOH) | ≥ 3000 cycles |
| Ingress Protection | IP20 |
| Communication Protocols | RS232, RS485, CAN |
| Power Status LED | OFF (Power Off), Flash 1 (Static state), Flash 3 (Charging/Discharging) |
| Alarm Indicators | Flash based on specific issues like over-voltage, over-current, temperature faults |
| State of Charge (SOC) | LED indicator varies from OFF to fully ON, indicating charge level from 0% to 100% |
| Passive Equalization | Ensures balanced charge across cells |
| Power Consumption when Off | ≤ 300μA |
| Alarm and Reset Functionality | For over-voltage, over-current, and other fault conditions |
| Recommended Installation | Vertical mounting, sturdy surface, temperature between 0°C and 55°C |
| Professional Installation Recommended | Due to high electrical requirements |
