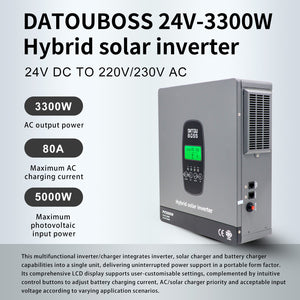

DATOUBOSS 3300W Hybrid Inverter 24V, Hybrid Solar Inverter On Grid, Supports Battery-Free Operation, 24V DC to 220/230V AC, BMS Protection System, with 150A MPPT for 24V Batteries(Compatible with WiFi 06)
DATOUBOSS 3300W Hybrid Inverter 24V, Hybrid Solar Inverter On Grid, Supports Battery-Free Operation, 24V DC to 220/230V AC, BMS Protection System, with 150A MPPT for 24V Batteries(Compatible with WiFi 06)

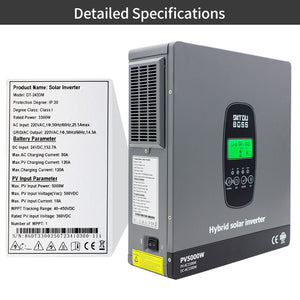

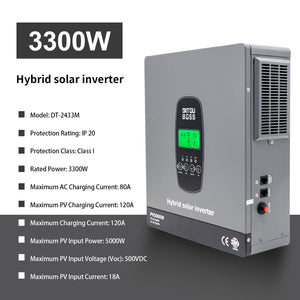

| Category | Details |
|---|---|
| Product Model | DT-2433M |
| Max PV Input Power | 5000 W |
| MPPT Tracking Voltage Range | 40VDC - 450VDC |
| Rated Input Voltage | 240 VDC |
| Max PV Input Voltage (Voc) | 500 VDC (at low temperature) |
| Max PV Input Current | 18 A |
| MPPT Tracker Count | 1 |
| Battery Type | Valve-Regulated Lead-Acid (VRLA) / Lithium / Custom (set via panel) |
| Rated Battery Voltage | 24 VDC |
| Battery Voltage Range | 21 - 30 VDC (default) |
| Max PV Charging Current | 120 A |
| Max AC Charging Current | 80 A |
| Total Max Charging Current | 120 A |
| Rated Output Power | 3300 W |
| Rated Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 187 - 264 VAC |
| Rated Output Frequency | 50/60 Hz |
| Frequency Range (50Hz) | 47 - 52 Hz |
| Frequency Range (60Hz) | 57 - 62 Hz |
| Rated Output Current | 15 A / 14.3 A / 13.8 A |
| Power Factor | > 0.98 (at rated power) |
| AC Input | 220/230/240 VAC |
| AC Input Voltage Range | 165 - 280 VAC or 120 - 280 VAC (settable) |
| AC Input Frequency Range | 50Hz: 45 - 55 Hz, 60Hz: 55 - 65 Hz |
| AC Output | 3300 W |
| AC Output Voltage | 220/230/240 VAC |
| Output Voltage Accuracy | ±2% |
| Rated Output Frequency | 50/60 Hz |
| Output Frequency Accuracy | ±1% |
| Output Waveform | Sine Wave |
| AC Input | 220/230/240 VAC |
| AC Input Voltage Range | 187 - 264 VAC |
| AC Output | 3300 W |
| AC Output Voltage | 220/230/240 VAC |
| Rated Output Current | 15 A / 14.3 A / 13.8 A |
| Max Conversion Efficiency (Battery Discharge) | 94% (peak) |
| MPPT Tracking Efficiency | ≥99.9% |
| Conversion Time | 10 ms (typical) |
| Display Type | LCD + LED |
| Cooling Method | Intelligent Fan Control |
| Communication Function | RS485 / Mobile APP (WIFI monitoring, optional) |
| Protection Level | IP20 |
| Installation Method | Wall-mounted |
| Battery Undervoltage Alarm | 22 VDC (default) |
| Battery Undervoltage Protection | 21 VDC (default) |
| Anti-Islanding Protection | ≤ 2 seconds |
| Overload Power Protection | Auto protection (battery mode) / Circuit breaker or fuse (grid mode) |
| Output Short Circuit Protection | Auto protection (battery mode) / Circuit breaker or fuse (grid mode) |
| Overtemperature Protection | >90°C (inverter and charging shutdown) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Noise | ≤ 55 dB |
| Altitude | ≤ 2000 m (derating required above this height) |
| Relative Humidity | 0% – 95%, non-condensing |

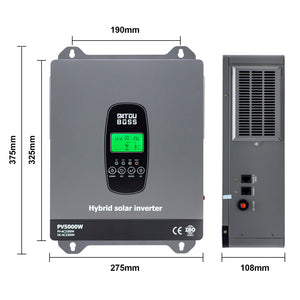

| Product Dimensions (L × W × H) | 325 × 275 × 102 mm |
| Package Dimensions (L × W × H) | 400 × 330 × 167 mm |
| Net Weight | 5.5 kg |
| Gross Weight | 6.5 kg |
